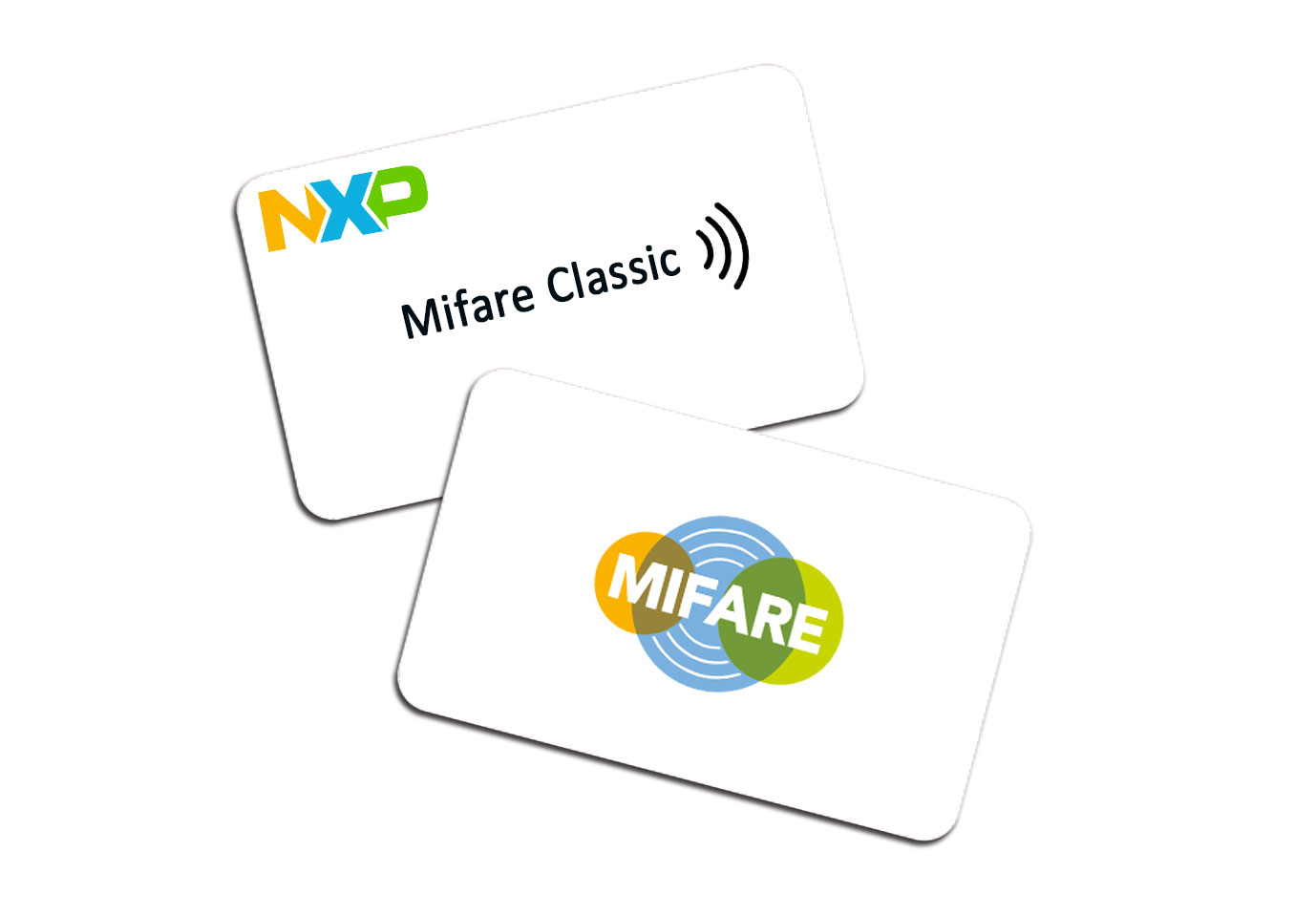

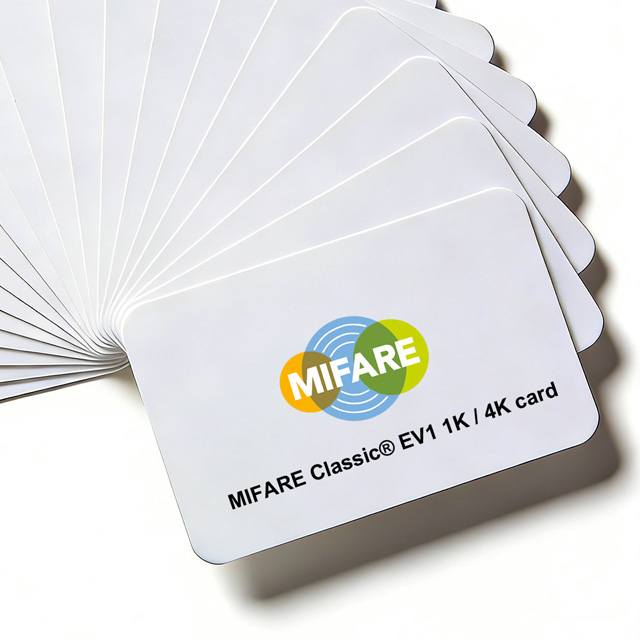

MIFARE Classic® EV1 1K / 4K card

SizeCR80--85.5*54mm (Be customized)

CraftGlossy, Matte, Matte, Epoxy (Single or Double), Brushed (Single or Double), Laser (Single or Double)

Thickness0.76mm / 0.84mm / or be customized

MaterialRPVC/PLA/PC/PET/PETG/PBAT/TESLIN

Printing methodLaser code, flat code (gold flat code, white flat code, black flat code), inkjet code (ordinary inkjet code, UV inkjet code), embossed code (gold embossed code, silver embossed code), barcode (one-dimensional barcode, two-dimensional code barcode), QR code

RF InterfaceISO/IEC 14443-2, Type A 13.56 MHz

Chips
MIFARE Classic®
NXP MIFARE Classic® EV1 1k (S50)
NXP MIFARE Classic® EV1 4k (S70)
NXP MIFARE® Mini (S20)

The MIFARE Classic EV1 contactless IC represents the latest evolution of the MIFARE

Classic product family and is suited for the maintenance of legacy systems in public

transporation, electronic toll collection, car parking, and other applications.

MIFARE Classic® is the pioneer in contactless smart ticket ICs operating in the 13.56 MHZ frequency range with read/write capability and ISO 14443 compliance.

Applications:

Public transport, Access management, Employee cards and on campuses.

MIFARE Classic® EV1 1K / 4K card

Dimensions	85.5*54mm (customizable size and shape
Protocol	ISO14443A、ISO15693、ISO18000
Chips	NXP series: NTAG, Mifare, Mifare(Duox), Desfire, Ultralight, UCODE, ICODE
Card Surface	Glossy, matte, frosted, epoxy (single or double sided), brushed (single or double sided)
Materials	PVC, PLA, PETG, PET, TESLIN, wood, bamboo, RPVC, paper, etc
Operating frequency	13.56MHZ
Read/write distance	2.5-8cm
Data retention	10 years
Erase/write times	100,000 times
Printing	Silk screen printing, offset printing, digital printing, anti-counterfeiting printing, UV printing
Coding process	Inkjet code, laser code, flat code, embossed code, bar code, QR code
