Sustainable RFID MIFARE Ultralight® AES card

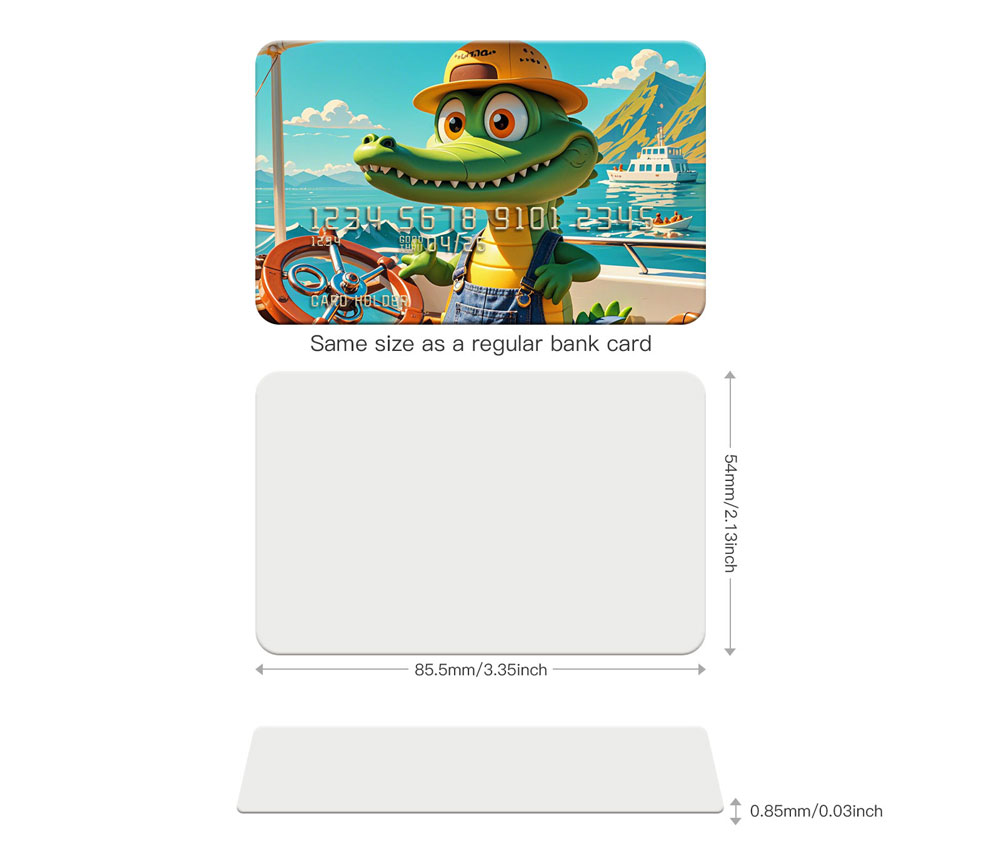

SizeCR80--85.5*54mm (Be customized)
CraftGlossy, Matte, Matte, Epoxy (Single or Double), Brushed (Single or Double), Laser (Single or Double)
Thickness0.76mm / 0.84mm / or be customized
MaterialRPVC/PLA/PC/PET/PETG/PBAT/TESLIN
Printing methodLaser code, flat code (gold flat code, white flat code, black flat code), inkjet code (ordinary inkjet code, UV inkjet code), embossed code (gold embossed code, silver embossed code), barcode (one-dimensional barcode, two-dimensional code barcode), QR code
Frequency13.56MHz
Chips
NXP MIFARE Ultralight® AES
The MIFARE Ultralight® AES IC delivers a new level of trust for limited-use tickets and key cards by supporting AES cryptographic authentication. Designed as a secure, contactless replacement for traditional paper tickets, mag-stripe, barcode, and QR code-based systems, the IC gives solution providers a more convenient, secure way to issue single-trip and multi-use transit tickets, event tickets, access passes, loyalty cards. Further, in hospitality, it gives guests secure access to hotel rooms and other hotel facilities, including spas, gyms, and parking garages.
Crusie / Ferry
Gym / Tennis
Skydiving / Goft
Airport luggage tag
More applications
More applications
More applications
Ski day pass card
Baseball
Key applications of RFID MIFARE Ultralight® AES card
Single-trip and multi-use transit tickets
Hospitality RFID basic guest key card
Sporting-event tickets
Exhibition passes
Access passes, e.g. festival or leisure park entry
Electronic vouchers
Loyalty programs
Key Benefits of RFID MIFARE Ultralight® AES card
AES cryptography for secure authentication and protected data access with 128-bit key length and optional Command Counter to limit negative authentication attempts resulting in strong guest protection, card clone prevention, and secure room access
Chip-level security implementations to ensure privacy, including 7-byte UID with optional Random ID support
Originality verification using pre-programmed, ECC-based originality signature, plus originality check back on 128-bit originality key that leverages AES authentication
Key features of RFID MIFARE Ultralight® AES card
Privacy & Ownership
7-byte UID with optional Random ID support for enhanced privacy
ECC-based originality signature (pre-programmed)
Originality check based on 128-bit originality key leveraging the AES authentication

Contactless Performance
ISO/IEC 14443 A -2 / -3 compliant
Operating distance of up to 10 cm
Data transfer of 106 kbit/s

Memory
144-byte EEPROM user memory
Number of single write operations: 100,000

Scalability
Easy design-in by using the same memory structure with the predecessor MIFARE Ultralight products
helps to streamline integration and supports scalability within the MIFARE IC family with the use of same AES authentication commands
Why choose us?
Amusement park/Water park
Eat & Drink & Entertain ( all in one card)
CE & Exhibition
Security of RFID MIFARE Ultralight® AES card
Protected data access based on AES authentication with 128-bit key length and optional Command Counter to limit negative authentication attempts
CMAC protection for message integrity protection
Optional AES authentication protection for 1x out of 3x 24-bit one-way-counter
Common Criteria certification: EAL 3+
FAQ
Optional materials
PVC/PET/PETG/PLA/PBAT/RPVC/WOODEN/TESLIN/PC
