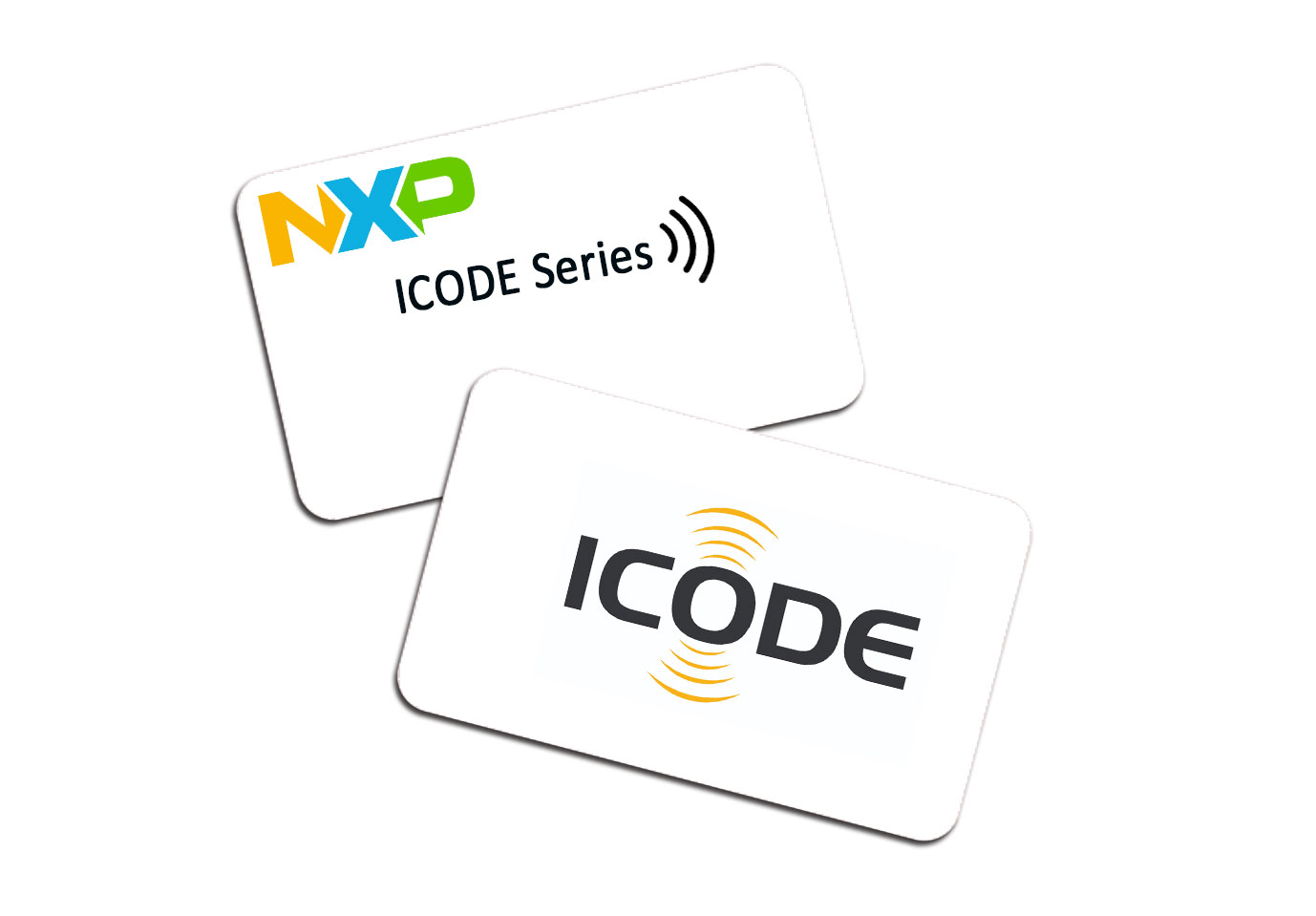

RFID NXP ICODE® SLIX-L Card

RFID NXP ICODE® SLIX-L

SizeCR80--85.5*54mm (Be customized)

CraftGlossy, Matte, Matte, Epoxy (Single or Double), Brushed (Single or Double), Laser (Single or Double)

Thickness0.76mm / 0.84mm / or be customized

MaterialRPVC/PLA/PC/PET/PETG/PBAT/TESLIN

Printing methodLaser code, flat code (gold flat code, white flat code, black flat code), inkjet code (ordinary inkjet code, UV inkjet code), embossed code (gold embossed code, silver embossed code), barcode (one-dimensional barcode, two-dimensional code barcode), QR code

Frequency13.56MHz

Chips
NXP ICODE® SLIX-L
NXP ICODE® SLIX
NXP ICODE® SLIX-S
NXP ICODE® SLIX2

The ICODE SLIX-L IC is a dedicated chip for smart label applications with the need for a

leaner custom-specific command set, smaller memory and/or a product which takes care

of the increasing demand for perfect customer privacy.

ICODE SLIX-L RF interface (ISO/IEC 15693)

EEPROM

- 512 bits, organized in 16 blocks of 4 bytes each, 4 blocks are summed up to 1 page

- 50 years data retention

- Write endurance of 100000 cycles

Applications of Sustainable RFID NXP ICODE® SLIX-L

Factory automation

Industrial and laundry

Asset management

Libraries and rental

RFID NXP ICODE® SLIX-L Card

Dimensions	85.5*54mm (customizable size and shape
Protocol	ISO14443A、ISO15693、ISO18000
Chips	NXP series: NTAG, Mifare, Mifare(Duox), Desfire, Ultralight, UCODE, ICODE
Card Surface	Glossy, matte, frosted, epoxy (single or double sided), brushed (single or double sided)
Materials	PVC, PLA, PETG, PET, TESLIN, wood, bamboo, RPVC, paper, etc
Data retention	10 years
Erase/write times	100,000 times
Printing	Silk screen printing, offset printing, digital printing, anti-counterfeiting printing, UV printing
Coding process	Inkjet code, laser code, flat code, embossed code, bar code, QR code
